Fresh air enters the booth through the full top intake plenum and travels downwards across the cabin evenly into the side bottom exhaust plenums providing a safe environment   and a supreme air flow for a great paint job.



All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.

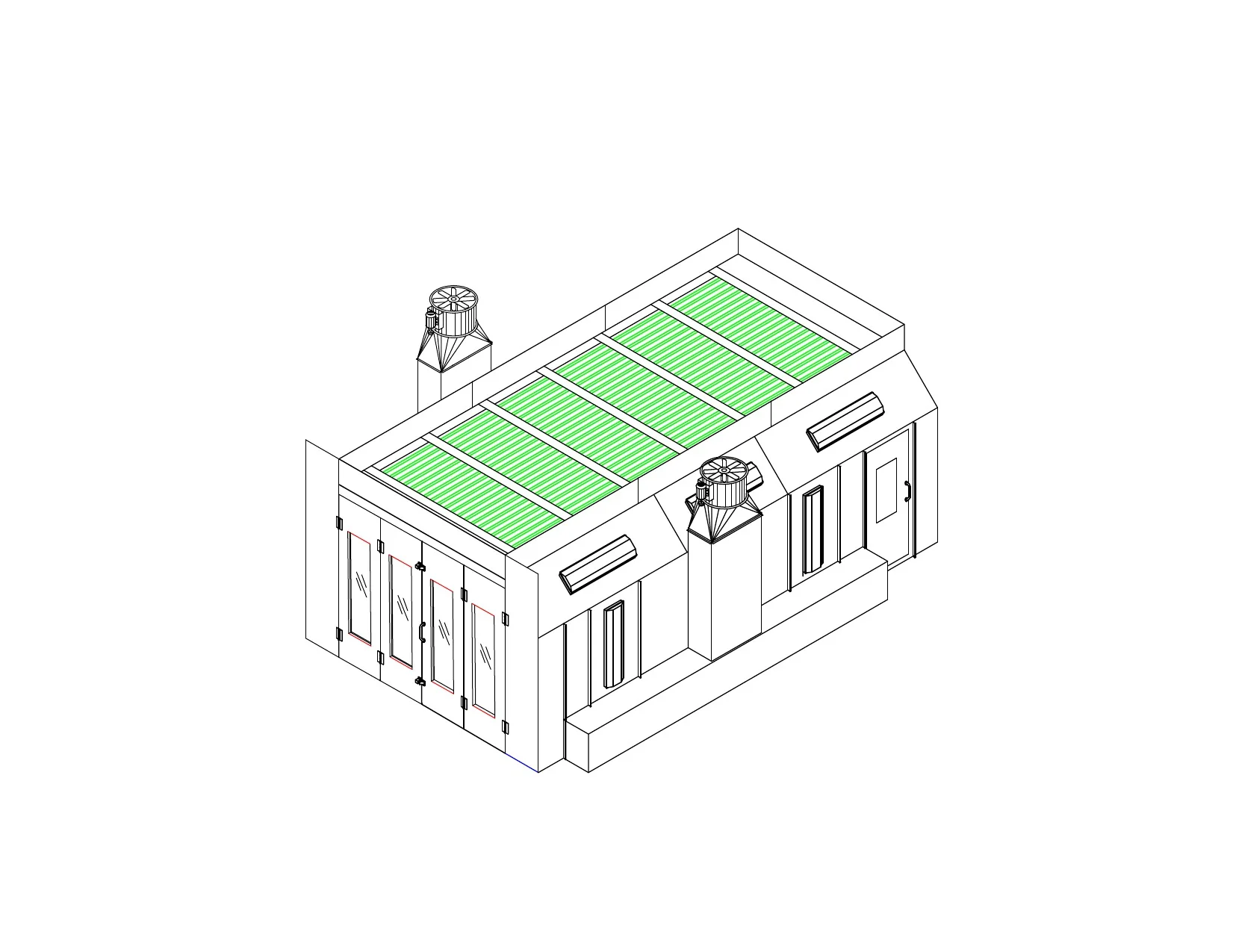

Paint Spray booth Model NS-SDF

Outside dim. 14'-4"Wide x 24'-4"Long x 11'-2"High

Inside dim. 14'Wide x 24'Long x 9'High

  • (1) Set of Drive in doors, opening Dim. 9'x9'
  • (1) Side access man door Dim. 3'x7'
  • (10) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
  • (2) 24" Dia. Tubeaxial belt drive exhaust fans CFM's @ .250" SP= 8,573 ea. X2=17,146
  • (2) 2hp 3ph motor 208-230/460v. 60 hz
  • (1) Mark dywer manometer kit defines air flow pressure
  • (20) Exhaust filters w/ 40 exhaust filter grids
  • (40) Intake filter pads
  • (1) Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.
  • (1) Installation exploded view drawings booth elevations and specifications.
  • Tubular steel frame doors for more durability and solid look
  • All components are UL approved



  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Pre-fab Electrical control Kit
  • 1 Phase Upgrade
  • Observation Windows On Entry Doors.
  • (2) 24" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Interlock Combo Kit
  • Fire Suppression System
  • 30" Dia. Intake fan package
  • Drive-thru kit. 2nd set of Drive in doors, opening 9x9
  • 1,000,000 BTU'S LowNOX Heating unit
  • 1,000,000 BTU'S Heating unit
  • 400,000 BTU'S Heating unit
