AIR FLOW DESCRIPTION:

Fresh air enter the booth through the top intake plenum and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.

BOOTH CONSTRUCTION:

All of our booths are made with premium 18 ga. Zinc galvanized steel panels companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.



INCLUDED:

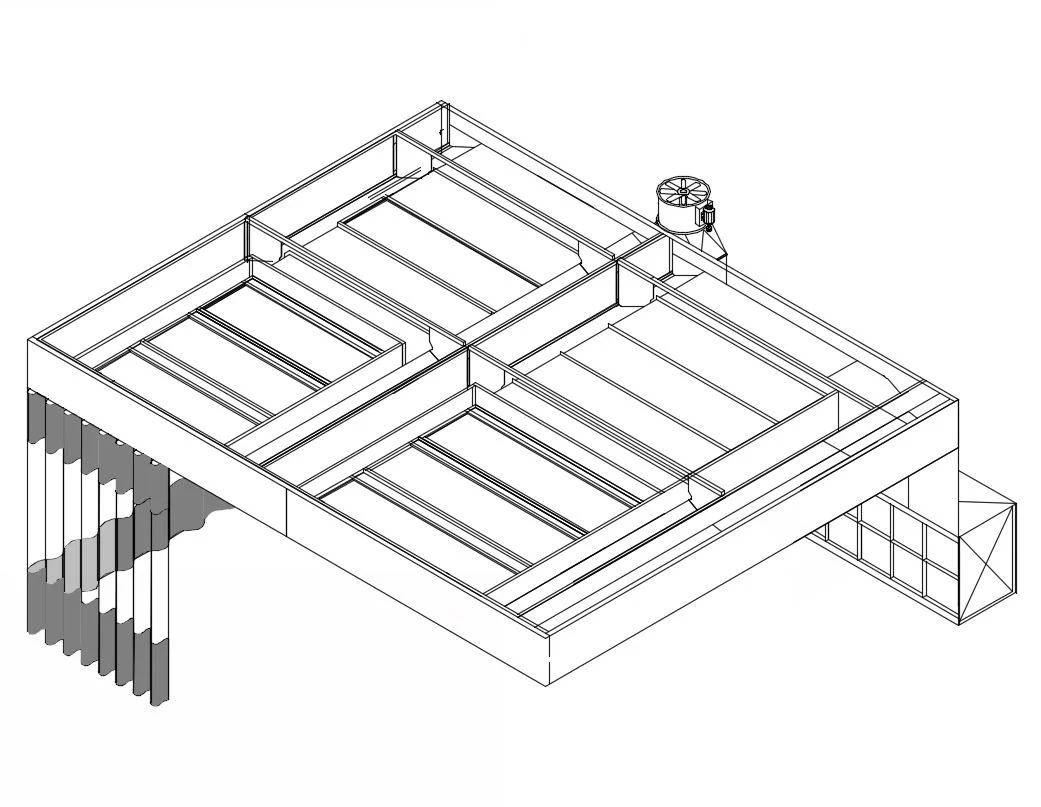

PAINT SPRAY BOOTH MODEL SBNG-DPS 200

Outside dim. 24'-4" Wide x 23'-4" Long x 11'-2" High

Inside dim. (2) 12' Wide x 20' Long work bays

  • (4) Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.
  • (16) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
  • (2) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP = 13,180 x 2 = 26,360
  • (2) 3hp 3ph motor 208-230/460v. 60 hz
  • (2) Mark Dywer manometer kit defines air flow pressure
  • (24) Exhaust filters w/ (24) exhaust filter grids
  • (40) Intake filter pads
  • (1) Hardware set for assembly; nuts & bolts and screws
  • (1) Installation exploded view drawings booth elevations and specifications.
  • All components are UL approved

optional (add-on items):

Description

  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Pre-fab Electrical control Kit
  • 1 Phase Upgrade
  • Observation windows on Entry Doors
  • 30" Dia. 9 ft. Exhaust duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Interlock Combo Kit
  • Fire Suppression System
  • 30" Dia. Intake fan package
  • 1,000,000 BTU's LowNOX Heating unit
  • 1,000,000 BTU's Heating unit
  • 400,000 BTU's Heating unit
