Fresh air enters the booth through the full top intake plenum and travels downwards across the cabin evenly into the side bottom exhaust plenums providing a safe environment and a supreme air flow for a great paint job..



All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.



Paint Spray booth Model NS-TSDD.

Outside dim. 20'WIde x 50'-4"Long x 18'-6"High

Inside dim. 16'Wide x 50'Long x 16'High

  • (1) Set of Drive in doors, opening Dim. 11'x15'
  • (2) Side access man door Dim. 3'x7'
  • (30) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
  • (4) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=11,180ea. X4=44,720
  • (4) 2hp 3ph motor 208-230/460v. 60 hz
  • (4) Mark dywer manometer kit defines air flow pressure
  • (64) Exhaust filters w/ (128) exhaust filter grids
  • (100) Intake filter pads
  • (1)Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal.

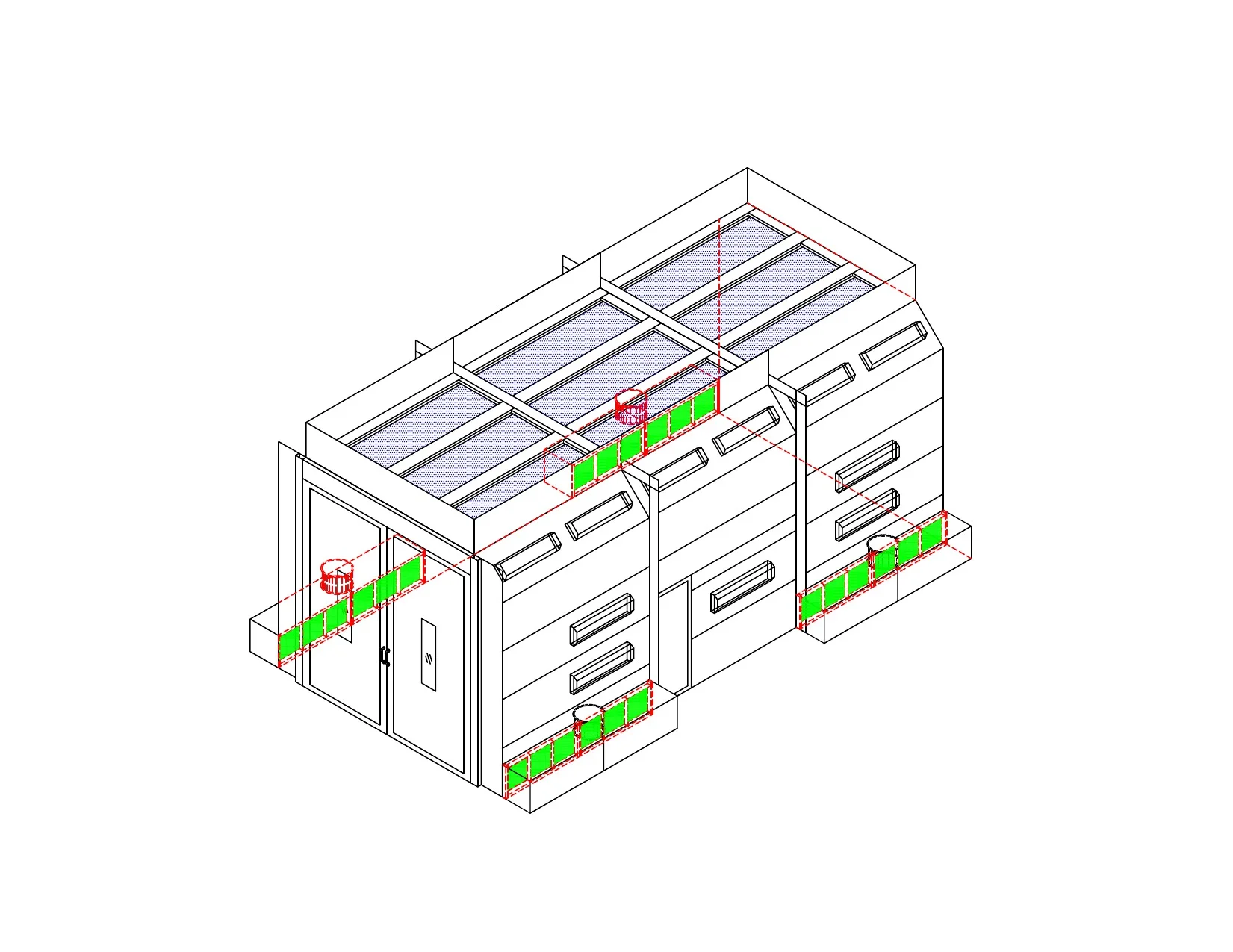

  • (1) Installation exploded view drawings booth elevations and specifications.
  • Tubular steel frame doors for more durability and solid look
  • All components are UL approved



  • Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
  • Drive-thru kit. 2nd set of Drive in doors opening 11x15
  • 2,000,000 BTU'S Heating unit
  • 1,000,000 BTU'S LowNOX Heating unit
  • 42" Dia. Intake fan package
  • Fire Suppression System
  • Interlock Combo Kit
  • (4) 30" Dia. 18 Ft. Exhaust Duct Kit, 5 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
  • Observation Windows On Entry Doors.
  • 1 Phase Upgrade
  • Pre-fab Electrical control Kit
